A topographic survey gives a design team the shape of the land. Once that data leaves the surveyor’s hands, architects and engineers turn it into working design tools. In Louisiana, where ground is often flat and drainage decisions carry real weight, this handoff matters as much as the field work itself.
Turning Survey Points Into the Existing-Ground Model Designers Actually Use
Field crews collect elevation points across a site. Each point carries a location and a height. On its own, that’s just a list of numbers.

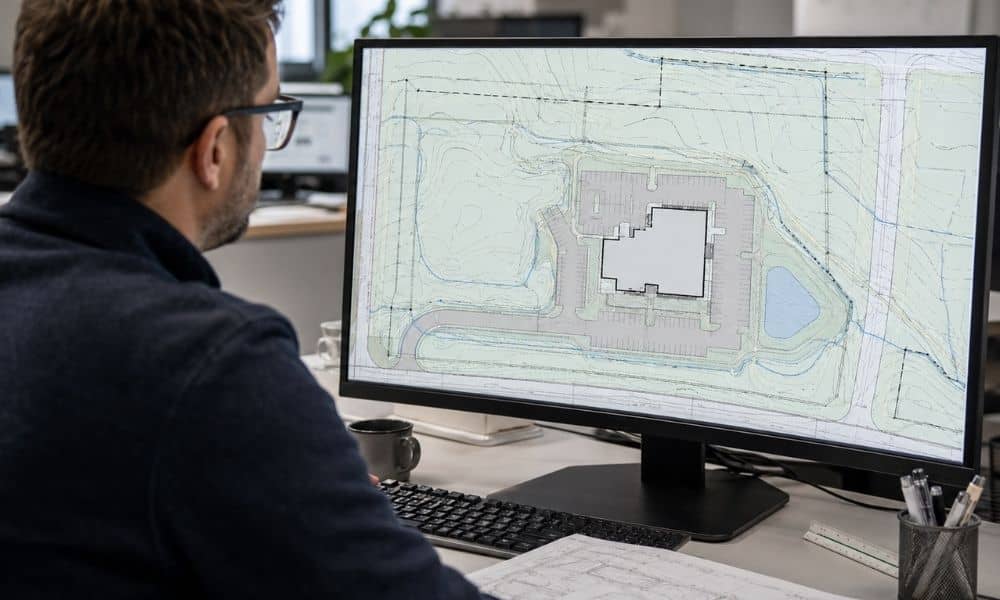

Design software turns that list into a surface. Civil engineers and architects build what’s called an existing-ground model, a digital version of the land as it sits today. This model is not a decoration. It’s the reference point for every design decision that follows.
When an engineer raises a parking lot six inches, the software compares that new elevation against the existing-ground model. When an architect sets a finished floor height, the same model tells them how that height relates to the grade outside the door.
Breaklines and elevation points feed this surface. So does data collected along ditches, tops and bottoms of slopes, and other spots where the ground changes shape. The design team’s software connects these points into triangles that approximate the land’s surface between measured locations.
Without this step, a topographic survey is just data sitting in a file. With it, the survey becomes the base every other design decision gets checked against.
Why Breaklines Matter More Than a Smooth-Looking Contour Map
A contour map looks clean. Lines curve gently across the page, showing elevation bands at set intervals. But the real ground isn’t smooth. Curbs have edges. Walls have faces. Pavement meets grass in a sharp line, not a gradual slope.
Breaklines record those sharp changes. They tell the software: don’t smooth this out, there’s a real edge here. Without breaklines, a computer-generated surface might round off a curb face or blur the edge of a retaining wall into a slope that doesn’t exist.
This matters when an engineer checks drainage. Water doesn’t follow a smoothed-out surface. It follows the actual edges and low points on the ground. A grading plan built on a surface missing its breaklines can send water in a direction the real site won’t send it.
It also matters for coordination between design disciplines. If an architect’s site plan shows a curb in one spot and the civil engineer’s grading plan shows the same curb four inches off, someone built their drawing on incomplete information. Breaklines close that gap by giving both disciplines the same defined edges to work from, not just an interpolated guess between points.
Matching Building Entrances, Pavement, and Exterior Spaces to Surveyed Elevations
A building doesn’t sit in isolation. Its entrances, sidewalks, and parking areas all have to meet the ground somewhere, and that meeting point has to make sense.
Architects use surveyed elevations to set entrance thresholds that align with the walkway leading up to them. A threshold set too high creates a step where none was planned. Set too low, and water can run toward the door instead of away from it.
Civil engineers use the same elevations to lay out ramps, plazas, and parking areas that connect back to the building at a slope people can actually walk or drive on. In Louisiana, where sites can sit close to flood elevations, that connection point often needs to account for finished floor heights set well above existing grade.
None of this works from a general sense of “the site is mostly flat” or “the entrance is near the parking lot.” It works from actual measured points tied to a known elevation datum. That’s what lets a design team set an entrance elevation with confidence that it will meet the sidewalk the way the drawing shows.
How One Topographic Dataset Becomes a Shared Reference Across Design Disciplines
The same survey often serves more than one design team. An architect studying how a building sits against the surrounding grade may pull from the same file a civil engineer uses to lay out site grading, storm drainage, and buried utility lines.
Working from one base has a practical benefit: fewer mismatches. If the architect’s exterior stair location shifts slightly during design, the civil engineer working from the same surveyed points can catch that change against the same existing grade, rather than working from a separate hand-me-down sketch.
This shared reference doesn’t mean every discipline uses the data the same way. An architect may care most about the building’s footprint and how people move between the building and the parking area. A civil engineer may spend more time on drainage patterns, pipe slopes, and how storm water moves across the whole parcel. Both are reading the same measured ground, just for different purposes.
When design teams stop referencing the shared survey and start working from copies, mismatches creep in. Keeping everyone tied to the same original dataset is what keeps the drawings talking to each other.
When the Design Team Needs More Detail Than the Original Topographic Survey Captured
A topographic survey is scoped for a purpose. If that purpose was a preliminary site layout, the survey may not include every measurement a later design phase needs.
During design, a specific spot can turn out to need more detail than the original survey provided. Maybe a drainage structure needs tighter elevation readings than the original point spacing gave. Maybe a small area near a property line needs a closer look because a wall or fence is now planned there.
When that happens, the right move is to request supplemental field measurements for that specific area, not to guess at the missing information. A design decision based on an assumed elevation instead of a measured one can cause real problems once construction starts.
This isn’t a sign the original survey was done wrong. It reflects the scope that was agreed to at the time. Design needs can change as a project develops, and the survey scope should be able to change with it.
Frequently Asked Questions
Can architects import topographic survey data directly into design software?
Depending on the deliverables provided and the software being used, digital survey information can often be incorporated into CAD, civil-design, or other project workflows. The appropriate file format and data requirements should be coordinated with the surveyor and design team.
Why do engineers need breaklines if the topographic survey already has contours?
Contours represent elevation patterns across the site, while breaklines help define locations where the character or slope of a surface changes distinctly. They can therefore provide important information when creating or checking a digital representation of existing ground.
Do architects and civil engineers use the same topographic survey data differently?
Yes. They may work from the same measured site information but use different portions of it for their respective design responsibilities. Architects may focus more heavily on building-to-site relationships, while civil engineers often need terrain information for exterior site and infrastructure design.
Can an engineer request additional survey data after design has started?
Yes. If a design decision requires information that was outside the original survey scope or needs greater detail in a particular area, the design team may request supplemental field measurements.
Does topographic survey data automatically show every underground utility?
No. The contents of a topographic survey depend on the agreed scope and available information. A project requiring specific underground-utility information should have those requirements clearly coordinated rather than assuming every buried feature will automatically appear in the topographic dataset.
